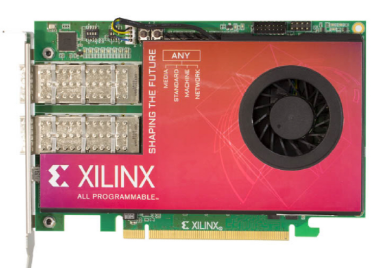

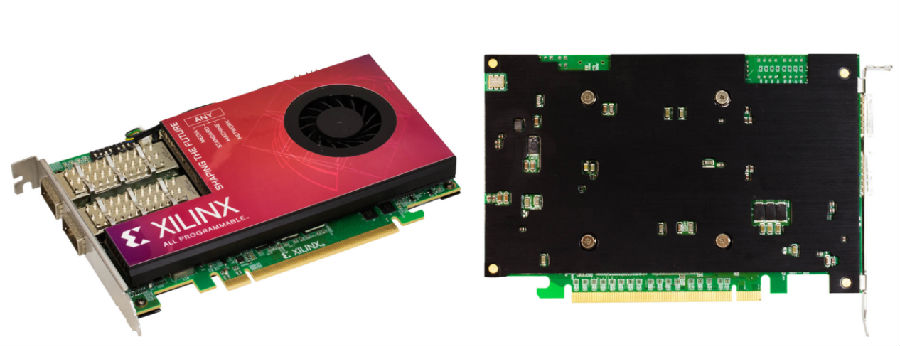

The TUL FPGA PCIe Accelerator Card uses a Xilinx Field Programmable Gate Array (FPGA) as a programmable accelerator for data center applications.
The card is configured with Kintex Ultra Scale KU115 which supports 40Gb Ethernet operation over 2 QSFP28 connectors.
? PCIe Compliant in a Half-Length, Full-Height form factor
? PCIe Gen3 x16 with bifurcation to dual x8 links or single x8 link without bifurcation
? Xilinx? Kintex? Ultrascale? XCKU115-2FLVB2104E

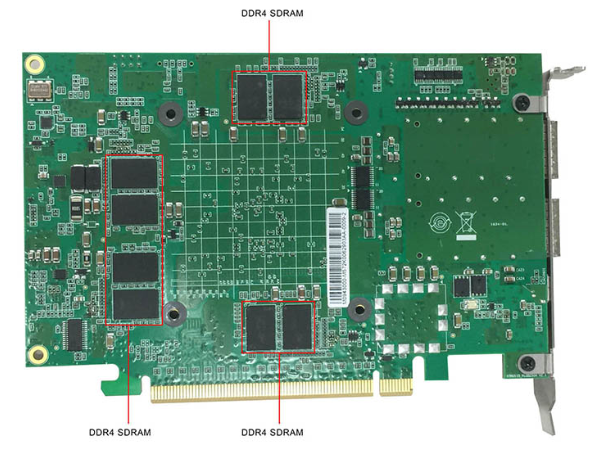

? Four (4) DDR4 Interfaces (soldered down devices) - three (3) 72bit and one (1) 64bit capable of operating to 2400MT/s
? On-board re-programmable flash memory for configuration
? Two (2) 40Gb Ethernet ports with QSFP28 connector
? JTAG (micro USB) port for programming
? Variable cooling fan operation for optimal ambient noise performance or passive heat sink
? On-board power telemetry via PMBus
